| Brand | NTN |
|---|---|
| Weight | 0.030000 |
| Product Category | Deep groove ball bearings |
| Inner (mm) | 17 |
| Outer (mm) | 35 |
| Width (mm) | 8 |
| Seal | None, open bearing |
| Cage | Sheet steel cage |

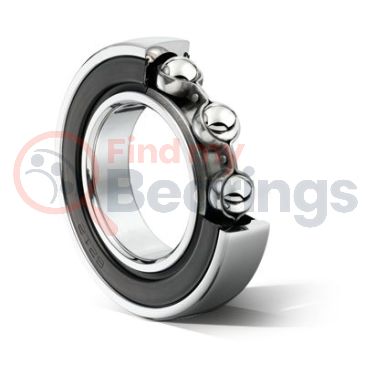

16003-NTN
Product Category
Deep groove ball bearings
SKU
400-23389
£7.44
Ships in 5-6 working days
·
14
pcs
UK & Ireland delivery · 1-2 working days.
Same day dispatch on orders before 4:30pm
Need it sooner? Contact our Sales Team
| Clearance | CN - Standard radial clearance |
|---|---|
| Bore | Cylindrical bore |
| Material | Standard bearing steel |
| Outer Ring | Without flange/groove |
| Ball Rows | Single row bearing |
| Rings Material | Steel |
| Material Of Rolling Elements | Standard bearing steel |
| Temperature Range | -40 to +120°C |
| Current Insulation | No current insulation |
| Limit Speed Oil (rpm) | 24000 |
| Limit Speed Grease (rpm) | 20000 |
| Dyn. Load Rating (kn) | 7.55 |
| Stat. Load Rating (kn) | 3 |
| Tolerance Class | Tolerance class P0/PN2 / ABEC 1 |
| Iso | ISO 15 |
