| Brand | NTN |
|---|---|
| Weight | 0.270000 |
| Product Category | Deep groove ball bearings |
| Inner (mm) | 45 |
| Outer (mm) | 75 |
| Width (mm) | 16 |
| Seal | Cover on both sides |
| Cage | Sheet steel cage |
6009ZZNR/2AS-NTN
Product Category
Deep groove ball bearings
SKU
400-00197
£28.35
ships tomorrow
·
1
pc
Ships in 5-6 working days
·
12
pcs
UK & Ireland delivery · 1-2 working days.
Same day dispatch on orders before 4:30pm
Need it sooner? Contact our Sales Team
| Clearance | CN - Standard radial clearance |
|---|---|
| Bore | Cylindrical bore |
| Material | Standard bearing steel |
| Outer Ring | Annular groove with circlip in outer ring |
| Ball Rows | Single row bearing |
| Rings Material | Steel |
| Material Of Rolling Elements | Standard bearing steel |
| Temperature Range | -20 to +120°C |
| Current Insulation | No current insulation |
| Limit Speed Grease (rpm) | 9200 |
| Dyn. Load Rating (kn) | 21 |
| Stat. Load Rating (kn) | 15 |
| Nsk Part Number | 6009ZZNR |
| Skf Part Number | 6009-2ZNR |
| Suffix Description | ZZ - Cover on both sides |
| Tolerance Class | Tolerance class P0/PN2 / ABEC 1 |
| Iso | ISO 15 |
Need help or advice? Talk to our experts Contact us
Product Substitutes
Product
Dimensions
Availability
Price
-

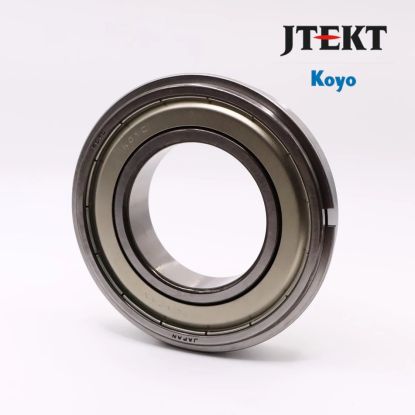

6009ZZNR-KOYO (JTEKT)
Deep groove ball bearings
Dimensions: 45 x 75 x 16Ships tomorrow · 1 pc£24.24 -
-
