| Brand | NTN |
|---|---|
| Weight | 0.880000 |
| Product Category | Deep groove ball bearings |
| Inner (mm) | 45 |
| Outer (mm) | 100 |
| Width (mm) | 25 |
| Seal | None, open bearing |
| Cage | Sheet steel cage |

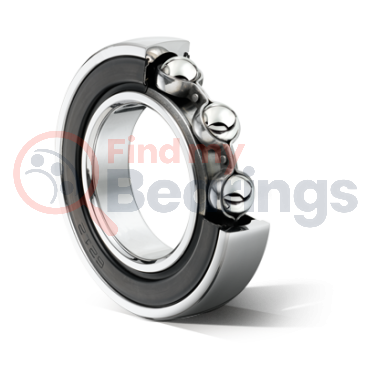

6309NR-NTN
Product Category
Deep groove ball bearings
SKU
400-00869
£48.76
Ships in 5-6 working days
·
11
pcs
UK & Ireland delivery · 1-2 working days.
Same day dispatch on orders before 4:30pm
Need it sooner? Contact our Sales Team
| Clearance | CN - Standard radial clearance |
|---|---|
| Bore | Cylindrical bore |
| Material | Standard bearing steel |
| Outer Ring | Annular groove with circlip in outer ring |
| Ball Rows | Single row bearing |
| Rings Material | Steel |
| Material Of Rolling Elements | Standard bearing steel |
| Temperature Range | -20 to +150°C |
| Current Insulation | No current insulation |
| Limit Speed Oil (rpm) | 8200 |
| Limit Speed Grease (rpm) | 7000 |
| Dyn. Load Rating (kn) | 58.5 |
| Stat. Load Rating (kn) | 32 |
| Fag/ina Part Number | 6309-N+SP100 |
| Nsk Part Number | 6309NR |
| Skf Part Number | 6309 NR |
| Tolerance Class | Tolerance class P0/PN2 / ABEC 1 |
| Iso | ISO 15 |
Need help or advice? Talk to our experts Contact us
