| Brand | NTN |
|---|---|
| Weight | 0.830000 |
| Product Category | Deep groove ball bearings |
| Inner (mm) | 45 |
| Outer (mm) | 100 |
| Width (mm) | 25 |
| Seal | Cover on one side |
| Cage | Sheet steel cage |

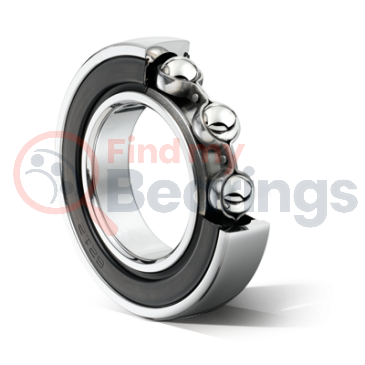

6309ZC3-NTN
Product Category
Deep groove ball bearings
SKU
400-00877
£44.77
Ships in 5-6 working days
·
7
pcs
UK & Ireland delivery · 1-2 working days.
Same day dispatch on orders before 4:30pm
Need it sooner? Contact our Sales Team
| Clearance | C3 - Slightly increased radial clearance |
|---|---|
| Bore | Cylindrical bore |
| Material | Standard bearing steel |
| Outer Ring | Without flange/groove |
| Ball Rows | Single row bearing |
| Rings Material | Steel |
| Material Of Rolling Elements | Standard bearing steel |
| Temperature Range | -20 to +150°C |
| Current Insulation | No current insulation |
| Limit Speed Oil (rpm) | 8200 |
| Limit Speed Grease (rpm) | 7000 |
| Dyn. Load Rating (kn) | 58.5 |
| Stat. Load Rating (kn) | 32 |
| Fag/ina Part Number | 6309-Z-C3 |
| Nsk Part Number | 6309ZC3 |
| Skf Part Number | 6309-Z/C3 |
| Suffix Description | Z - Cover on one side |
| Tolerance Class | Tolerance class P0/PN2 / ABEC 1 |
| Iso | ISO 15 |
